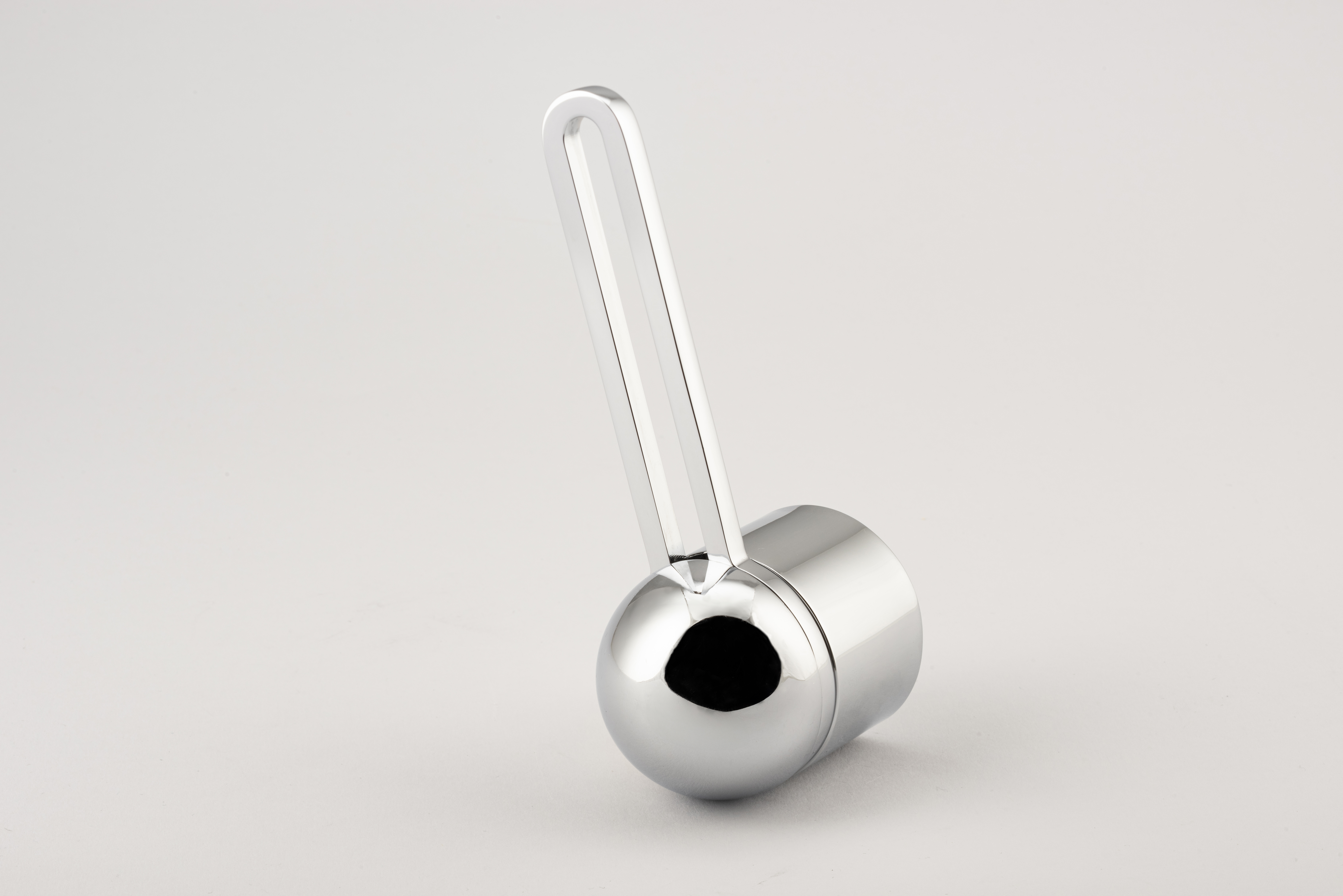

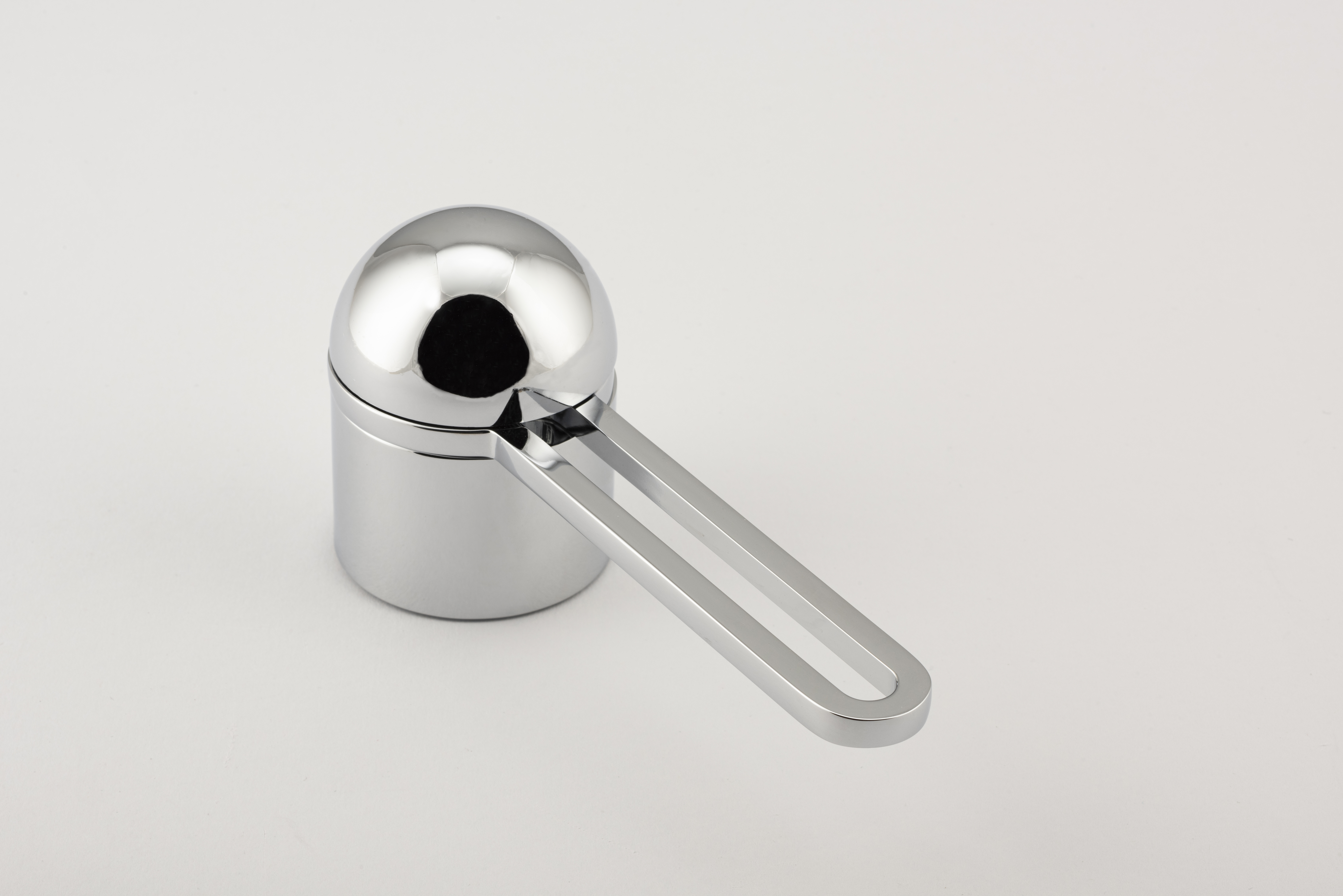

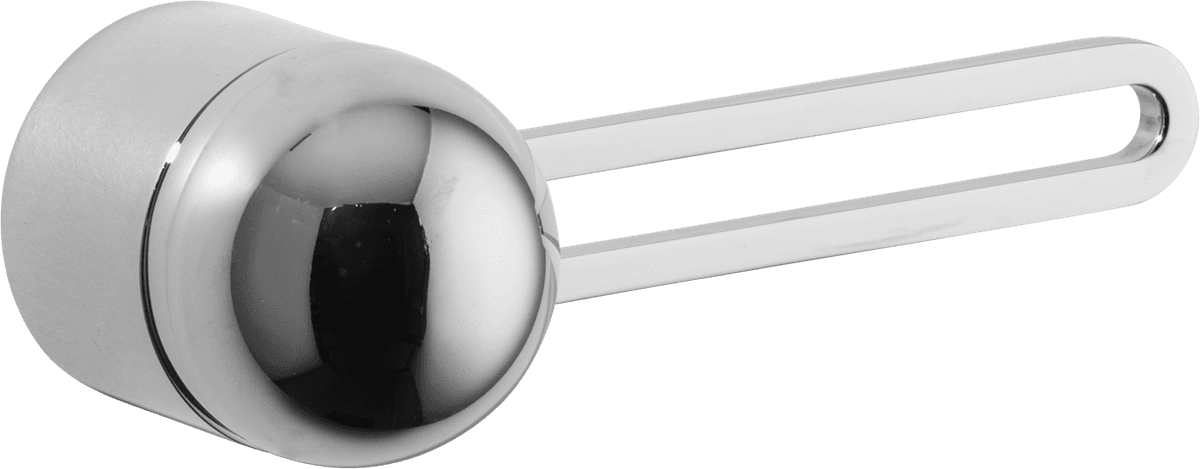

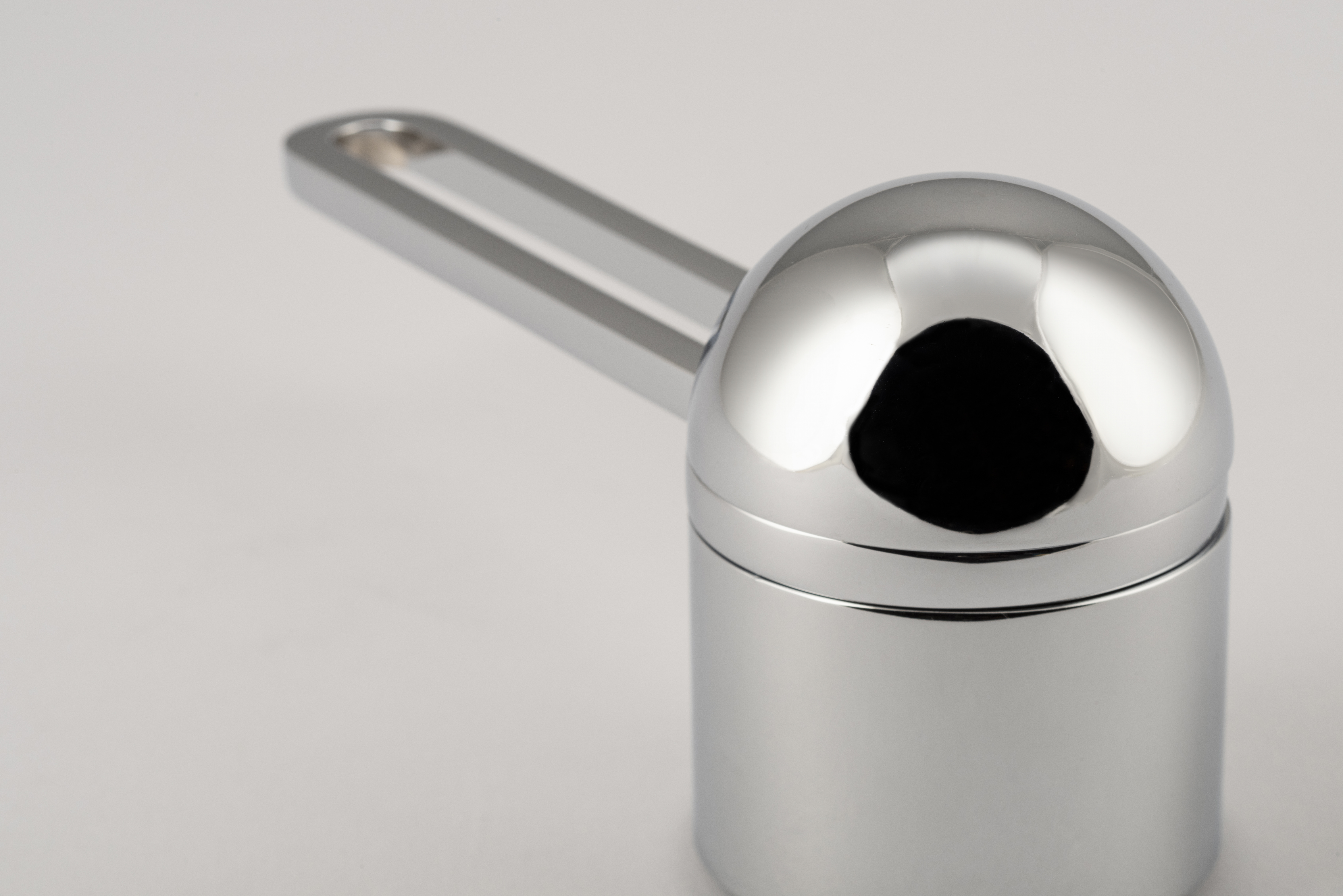

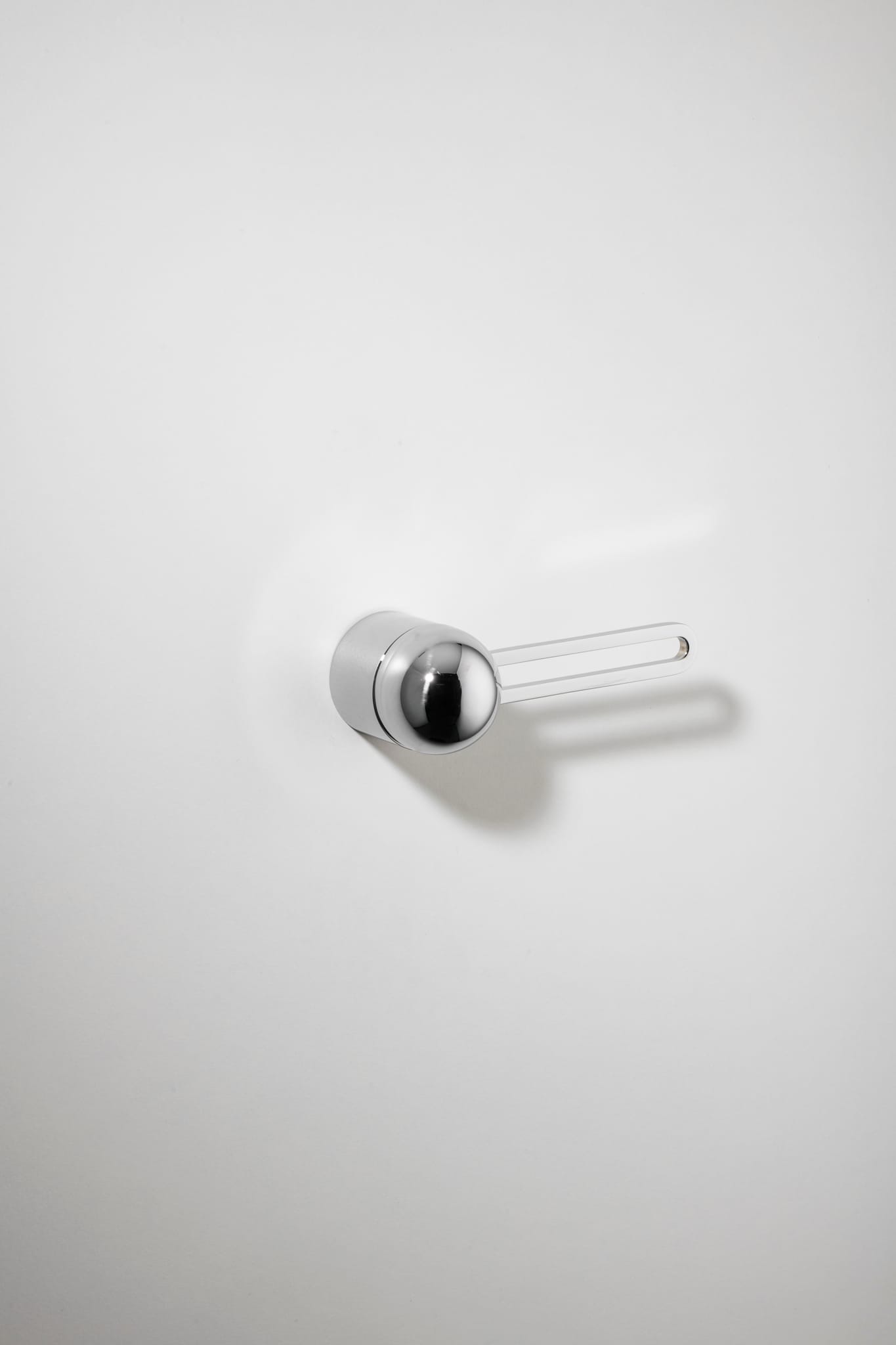

H01 Lever on Rose - Round Rose - Polished Chrome/Polished Chrome - 30193

The sleek, open-frame of the H01 Lever on Rose joins with a circular rose, enhancing functionality with its creative design. The rotating dome serves as commanding focal point. Offered in multiple finishes, the H01 is a refined standout in the Hemispheres Collection.

Imperial

Metric

Width

2 2/32"

52.0mm

Height

2 2/32"

52.0mm

Length

6 1/32"

153.0mm

Diameter

2 2/32"

52.0mm

Center to Center

1 20/32"

41.5mm

Backplate Diameter

—

52.0mm

Projection

2 22/32"

68.0mm

Download Specifications Sheet — PDF
Download Installation Instructions — PDF
Download Drill Template — PDF
You need an account to view these files.
Please login or create an account if you require access.

Download DWG File

Download DXF File

Download GLB File

Download MTL File

Download NWC File

Download OBJ File

Download RFA File

Download SAT File

Download SKP File

Download STEP File
Polished Chrome

Polished Chrome provides a clean and lustrous look, and is as diverse as it is enduring. Chrome exudes an aura of strength and assurance, providing spaces with a sense of conviction and luxury. Polished Chrome is a very durable finish and only requires occasional cleaning with a soft dry cloth to maintain its brightness and clarity. This finish is covered by a lifetime guarantee against corrosion.

Care:
Clean it regularly with a damp soft cloth and be sure to keep it dry.

Caution:
Highly durable finish.
